Master

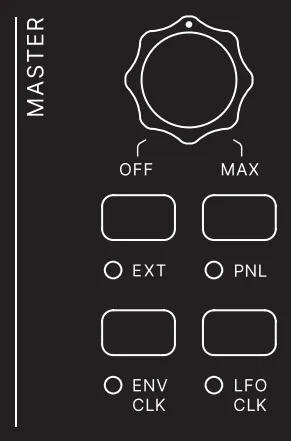

Master section

Master Volume

Section titled “Master Volume”

The Master Level knob is the final stage in the signal path. It controls the output level for both the jack outputs and the headphone output.

When the knob is turned to its lowest position, Katla powers off, indicated by a click. If you experience hanging MIDI notes, you can send a MIDI panic message by switching this knob off and on.

EXT

Section titled “EXT”

Press this button to enable the external inputs, overriding the noise level slider.

PNL

Section titled “PNL”

Also known as manual mode, panel mode lets you override all stored values so Katla behaves exactly as the controls indicate.

ENV CLK

Section titled “ENV CLK”

Sync envelopes to the BPM set by your DAW or external clock. When enabled, the envelope sliders snap to musical intervals such as quarter notes, triplets, or dotted values.

LFO CLK

Section titled “LFO CLK”

Sync LFO times to the BPM set by your DAW or any external clock. When enabled, the rate slider snaps to musical intervals such as quarter notes, triplets, or dotted values.
